Engine Stands: CFM 56-7

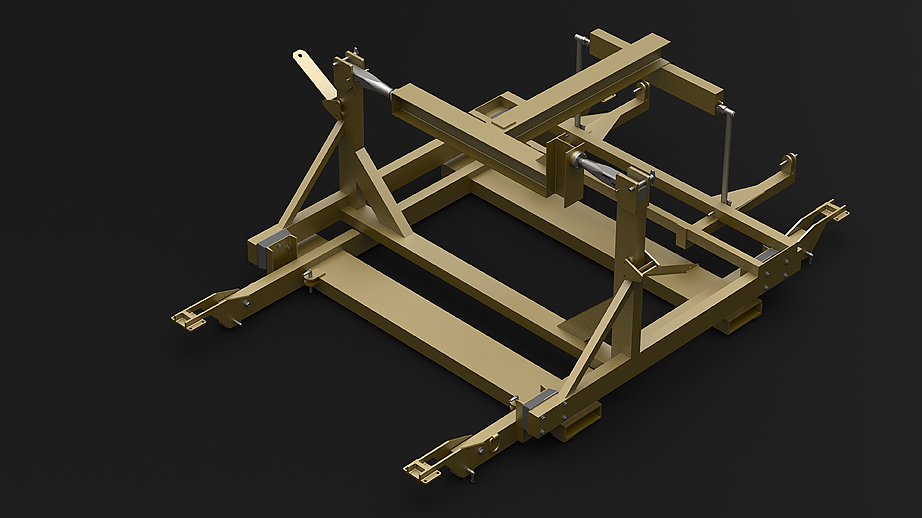

The CFM56-7 Engine Installation Stand is designed specifically for transportation, ground handling, and bootstrapping of General Electric CFM56-7 engines used on Boeing B737-600 to 900 series aircraft.  The Campbell Fabrication and Tooling CFM56-7 stand is comprised of a base assembly P/N CFT71561 and cradle assembly P/N CFT71567.

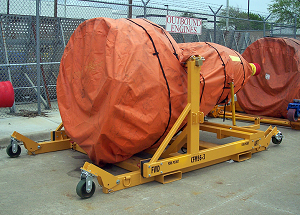

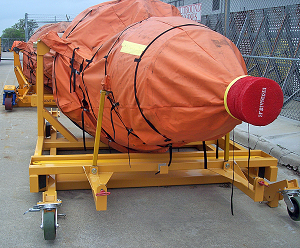

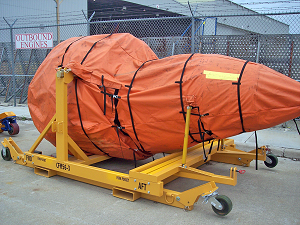

The stand rides on swivel casters and shock mounts and is equipped with towbars. The casters may be mounted at either of two heights. The lower position provides clearance for engine installation and removal. The casters may be stowed on the stand for shipping. The aft casters are equipped with locking swivel capabilities. The shock mounts prevent unwanted vibration or shock loads from being transmitted to the engine during handling and engine transportation.

The stand provides unique port and starboard forward engine mount spindles and a mount stanchion. Forward mounts are equipped with a spherical bearing for engine attachment. The aft mount is pinned. The stand is intended only for low speed use (3 MPH (5KPH) or less) on smooth-surfaced hangers, and can be used with the engine bootstrap equipment to install and remove CFM56-7 engines. The Cradle Assy. is equipped with retractable legs that are extended when the unit has been separated from the Base Assy and is used independently. The legs remain in the retracted position when not in use.

The stand is flux welded using either A500 or A36 carbon structural steel components.  All pins and related hardware are precision CNC machined using either 4130 or 17-4 stainless steel or 7075-T6 aluminum.  All stands are painted using epoxy based paint per customer requirements.  Yellow is the standard color; however customized colors are available at no extra charge.

Each stand is load tested per customer requirements utilizing NIST certified gauges to assure each stand meets quality standards prior to shipment.  Additionally, dye penetrant or mag particle inspections are performed prior to and following load testing.

For additional information on the CFM56-7 Engine Installation Stand, please use the ‘Contact Us’ link at the top of the page.

REQUEST QUOTE OR DETAILED INFORMATION

Call for a Quote (918) 987-0047

full image here


Manual Available Upon Request
